Automotive Body Structure: Components, Steel Grades, and Material Specifications

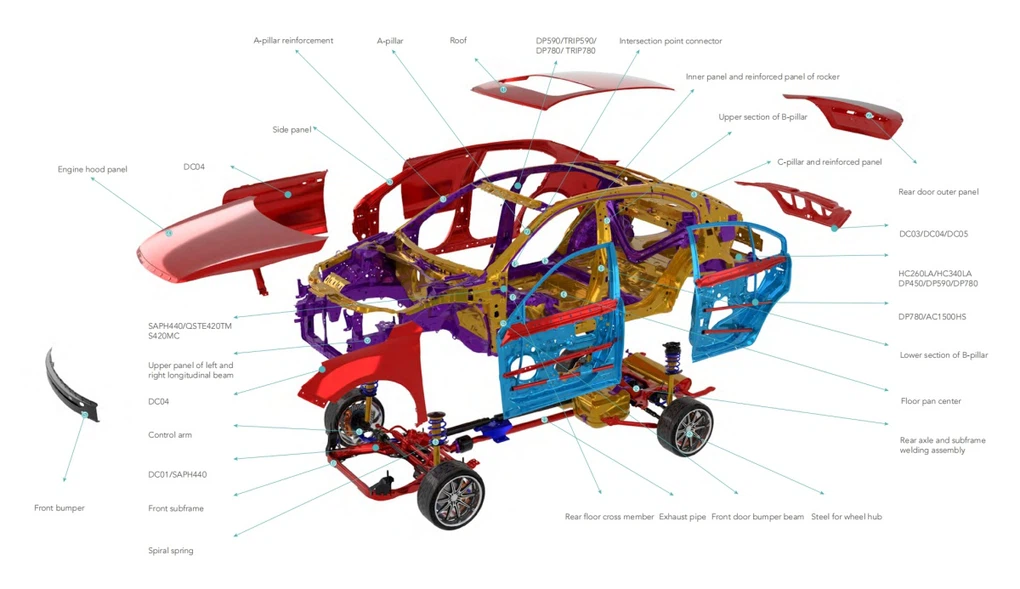

The Main Structural Components And Steel Applications

1. Roof

- Steel type: High Strength Low Alloy Steel (HSLA), Duplex Steel (DP)
- Typical grades: DP590, DP780, HC260LA
- Characteristics: It requires a lightweight design and certain rigidity, high strength, and ease of form.

2. Engine Hood Panel
- Steel type: cold rolled mild steel, galvanized steel
- Typical grade: DC04, DX54D+Z
- Characteristics: Easy to press molding, high surface quality, corrosion resistance.

3. Front and rear fenders (Fenders)
- Steel type: Cold rolled mild steel, galvanized steel
- Typical Grades: DC01, DC04, DX53D+Z
- Features: Smooth surface, easy to paint and mold.

4. A-Pillar
- Type of steel: Duplex (DP), Martensitic (MS), Hot Stamping Steel
- Typical grades: DP780, MS1300, PHS1500
- Characteristics: High strength, high impact resistance, critical load-bearing parts.

5. B-Pillar
- Steel type: hot stamping and forming steel, duplex steel
- Typical grades: PHS1500, DP980
- Characteristics: Requires high crashworthiness and durability.

6. Door Outer Panel (door Outer Panel)

- Steel type: Cold rolled mild steel, galvanized steel
- Typical grades: DX54D+Z, DC04
- Characteristics: High surface quality, good corrosion resistance.

7. door inner panel (Door Inner Panel)
- Steel type: High strength low alloy steel, duplex steel
- Typical grades: HC260LA, DP590
- Characteristics: High strength, lightweight.

8. Chassis Longitudinal Beams (longitudinal Beams)
- Type of steel: High Strength Low Alloy Steel (HSLA)
- Typical grades: S420MC, QSTE460TM
- Characteristics: Provides major load-bearing and torsional stiffness, strong fatigue resistance.

9. Side Panels
- Steel Type: Cold rolled steel, high strength low alloy steel
- Typical grades: HC340LA, DP590
- Characteristics: Strength and formability, supporting structural safety.

10. Front And Rear Bumpers (front And Rear Bumper Beams)
- Steel type: Duplex (DP), Maraging (MS)
- Typical grades: DP780, MS1200
- Features: High strength and energy-absorbing properties to ensure crash safety. 11.

11. Floor Pan Centre
- Steel type: High strength low alloy steel, galvanized steel
- Typical grades: HC260LA, HC340LA
- Features: Provides torsional rigidity and corrosion resistance.

12. Rear Floor Cross Member
- Steel Type: High Strength Low Alloy Steel
- Typical grade: HC340LA
- Features: Improves the structural integrity and strength of the chassis.

13. Trunk Lid Panel
- Steel type: Cold rolled mild steel, galvanized steel
- Typical grades: DC04, DX54D+Z
- Features: Excellent formability and high surface quality.

14. Front Subframe
- Type of steel: High-strength low-alloy steel, hot-rolled steel
- Typical grades: SAPH440, QSTE420TM
- Characteristics: High strength, strong load-bearing capacity.

15. Wheel hub (Wheel Hub)
- Type of steel: Speciality steel (Wheel Steel), hot rolled steel
- Typical grade: QSTE460TM
- Features: High strength and fatigue resistance, adaptable to high-stress environments.

16. Exhaust Pipe
- Steel type: Stainless steel
- Typical grades: SUS409, SUS430
- Features: High temperature and corrosion resistance.

17. Seat Structures
- Type of steel: High-strength low alloy steel, duplex steel
- Typical grades: DP590, HC340LA
- Characteristics: High strength, lightweight.

18. Reinforcement beams (Reinforcement Beams)
- Steel type: Martensitic steel (MS), Duplex steel (DP)
- Typical grades: MS1500, DP980
- Characteristics: Improve local rigidity and crashworthiness.

Common Steel Types and Application Characteristics

1. Cold Rolled Steel (CR)
- Application: Exterior cladding parts such as doors and roofs.
- Characteristics: Smooth surface, excellent formability, mainly used for exterior parts.

2. hot rolled steel (HR)
- Application: chassis, structural parts.
- Characteristics: High strength, good toughness, suitable for load-bearing parts.

3. Galvanised steel (GI)
- Applications: exterior coverings, structural parts.
- Characteristics: High corrosion resistance and long service life.

4. Duplex steel (DP)
- Applications: roof, inner door panels, bumpers.
- Characteristics: High strength, good formability, and suitable for light-weighting.

What is Duplex steel (DP)?

5. Martensitic steel (MS)
- Application: A-pillar, B-pillar, bumper beam.
- Characteristics: Ultra-high strength, used for safety-critical parts.

What is Martensitic steel (MS)

6. Hot Stamping Steel (PHS)
- Application: A-pillar, B-pillar, roof reinforcement.
- Characteristics: Hot stamped and formed to provide the highest strength and hardness.

What is Hot Stamping Steel (PHS)?

7. Stainless Steel (SS)
- Application: Exhaust system.
- Characteristics: High temperature and corrosion resistance.
