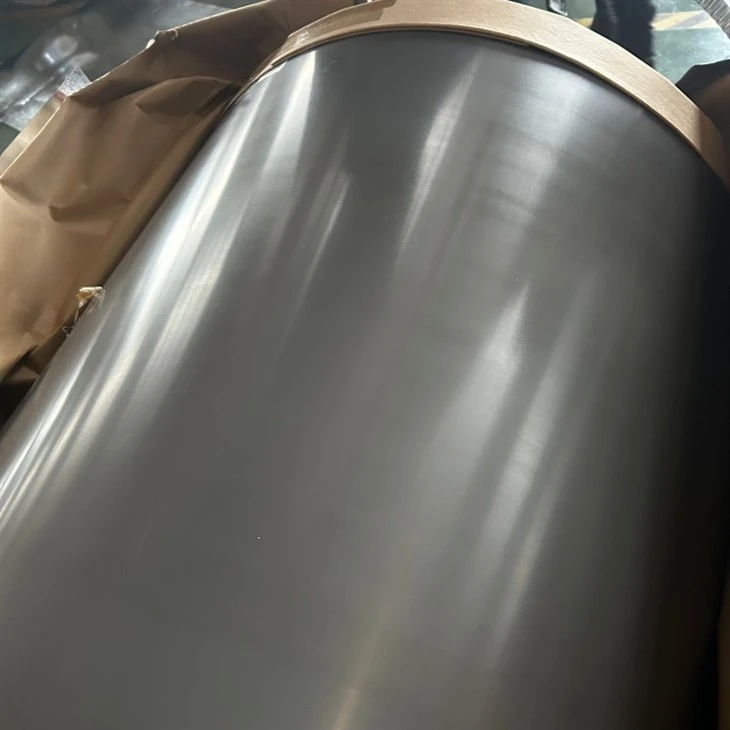

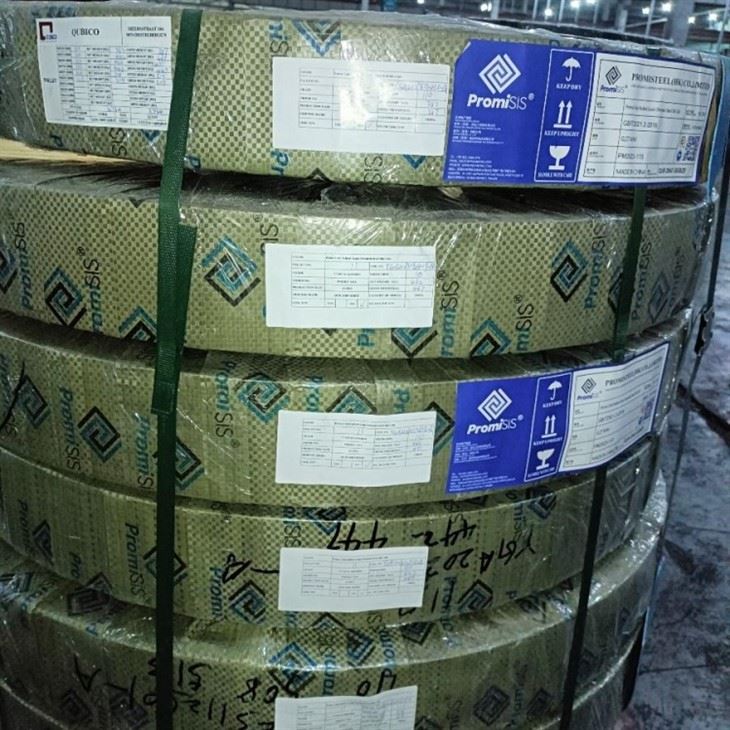

M6 Grain-Oriented Silicon Steel
Silicon Content : 3%
Thickness: 0.35mm
Brand:PromiSiS
Manufacturing Process: hot rolling/cold rolling
Applications: power, electrical, and military industries
M6 Grade Grain Oriented Silicon Steel is a specialized silicon steel sheet designed with high magnetic permeability and low core loss, making it an ideal solution for energy-efficient electrical components. With precise grain orientation, this silicon steel minimizes energy dissipation and enhances magnetic properties, particularly in transformers and high-performance silicon steel cores.
Our silicon steel coil offerings are manufactured using advanced processes at leading silicon steel mills to deliver consistent quality and meet international standards.
The "M6" label tells us something about its performance. The "M" stands for magnetic, and the "6" means its energy loss is measured when the magnetic induction reaches 1.6 Tesla. In simple terms, it's designed to minimize energy loss and improve efficiency, making it perfect for electrical applications.
specification
| Parameter | Specification/Details |
|---|---|
| Thickness | 0.35 mm |
| Width | 20 mm - 1250 mm (customizable) |
| Length | 200 mm - 3000 mm (fixed sheets) |
| Coil Inner Diameter (ID) | 508 mm (standard) or 610 mm (optional) |
| Coil Weight | 2 - 8 MT (as per customer requirement) |
| Flatness | ≤ 1.5 mm/m |
| Thickness Tolerance | ±0.02 mm |
| Surface Treatment | Insulation Coating (e.g., C5, C6 coating) |
| Grain Orientation | Single direction (Rolling Direction) |
| Density | 7.65 g/cm³ |
| Silicon Content | 3.0% - 3.3% |
| Surface Quality | Smooth, low roughness, suitable for precision cutting |
| Applications | Transformer cores, silicon steel sheets, laminations |
- Customizable Dimensions: Both coils and sheets can be tailored to meet customer needs.
- Insulation Coating: Improves resistivity and reduces eddy current loss.
- Versatile Applications: Perfect for silicon steel coils, silicon steel lamination factories, and transformer core production.
Our Product Range
Silicon Steel Coil: Available in various grades, including M4, M5, and M6.
Silicon Steel Sheet: Precision-processed sheets for laminations and cores.
Silicon Steel Laminations: Cut-to-size laminations for electrical components.
Silicon Steel Cores: Custom-designed cores to meet industrial needs.
