Modular Scaffolding Systems (Ringlock / Cuplock / Kwikstage): Best Projects for Each

In today's fast-paced construction industry, selecting the right scaffolding system can be the difference between a project staying on schedule or facing costly delays. While traditional methods have their place, modern system scaffolding has revolutionized how we approach height access.

Unlike traditional tube and coupler scaffolding, modular or system scaffolding consists of prefabricated modular components that are assembled at fixed connection points. This makes them suitable not only for construction and renovation projects but also for industrial applications such as refineries, chemical plants, shipyards, mining, or offshore installations.

Understanding the Core Modular Systems

The modular scaffolding systems that most people use include: Ringlock scaffolding, Cuplock scaffolding and Kwikstage scaffolding. What they all have in common are the standardised scaffold bays and pre-defined connection points, which will speed up the scaffolding assembling process and dismantling and simplify general handling.

We will give you a brief overview of the main differences and features of each below :

Ringlock Modular Scaffolds

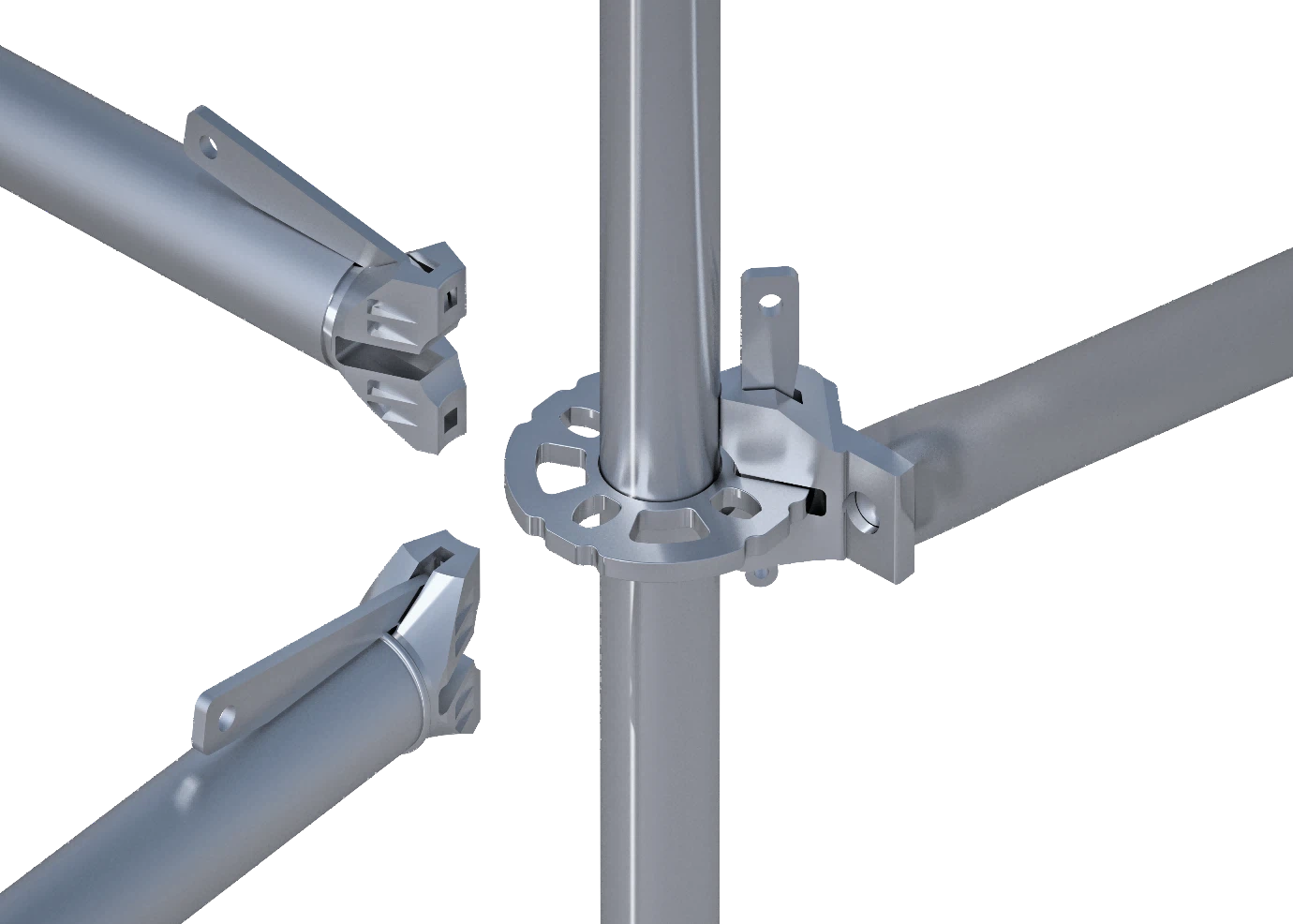

Ringlock modular scaffolding, also known as rosette scaffolding, is a scaffolding type that consists of virtical standards with ring-like node points at regular intervals, allowing for easy assembly and disassembly. Each connector has 8 punched holes into which ledgers and transoms can be hooked into and then be secured in place with a hammer. With a manageable number of components, this type of modular scaffolding is quick to assemble and easy to transport and easy to store. Ringlock scaffolds can be adapted to a variety of shapes to make it the ideal fit for industrial and construction applications. Which makes them a popular choice among scaffolders, especially in Europe and Northamerica.

• Best Projects for Ringlock: Due to its 360° flexibility, it is unbeatable for complex geometry projects, such as circular storage tanks, intricate industrial maintenance, and large-scale events or stages where precision and high load-bearing are required.

Cuplock Modular Scaffolds

Cuplock modular scaffolds Cuplock modular scaffolding is a scaffolding system used mainly in Asia. The name 'Cuplock' derives from the cups used to connect the ledgers and transoms with each other. Each node point consists of a lower fixed cup and an upper movable cup, which can hold a total of 4 ledgers and transoms. The T-shaped hooks of the ledgers or transoms are first hooked into the lower cup, then the upper movable cup is pushed onto the upper hook of the ledger or transom and initially tightened by hand. Finally, the joint is fixed with 3-4 well targeted hammer blows.

• Best Projects for Cuplock: Its robust locking mechanism makes it the "workhorse" for heavy-duty support and shoring. It is highly effective for building renovation and heavy civil engineering projects that require a rigid, stable frame.

Kwikstage Modular Scaffolds

Kwikstage modular scaffolds Kwikstage modular scaffolding, sometimes also called Quick Stage scaffolding, is ideal for light and medium duty projects. This type of modular scaffolding is characterised by its prefabricated triangular pressings on the scaffolding standards. Up to four ledgers can be attached to these at the same time. Kwikstage scaffolding is particularly popular in Australia and New Zealand, where it accounts for 80 per cent of total market usage.

• Best Projects for Kwikstage: Given its simplicity, it is the go-to for residential construction and standard commercial facades. It provides a fast setup for painters, bricklayers, and general maintenance crews working on straightforward structures.

Conclusion: Choosing the Right Fit for Your Project

Modular scaffolds including Ringlock, Cuplock and Kwikstage share common benefits such as versatility, quick assembly, stability, and high load-bearing capacities. Choosing the specific system often depends on your region and the complexity of the structure.

For more information on scaffolding types and their benefits, also see our other scaffolding blog articles or take a look at our scaffolding product range.
