Standard Cross-Reference: Equivalent Grades for SPA-H, Q355GNH, and S355J0WP

Weathering steel, also known as atmospheric corrosion-resistant steel, achieves enhanced corrosion resistance by adding specific alloying elements to plain carbon steel. These additions enable the formation of a dense, stable oxide rust layer in natural environments, which effectively resists erosion from corrosive media such as atmospheric moisture and marine climates, thus significantly extending the service life of the steel. SPA-H, Q355GNH, and S355J0WP are three widely used grades of weathering steel in the industrial sector. Among them, Q355GNH and S355J0WP have a clear equivalent correspondence. As a Japanese standard grade, SPA-H is also highly compatible with the two in terms of application scenarios and core performance. This paper conducts a comprehensive comparative analysis of the three grades from the perspectives of chemical composition, core mechanical properties, applicable scenarios, and usage methods, providing a reference for engineering material selection.

1. Origin of Grades and Definition of Equivalent Relationship

The three grades belong to different standard systems, and their equivalence is determined primarily based on the consistency of chemical composition, mechanical properties, and the overlap of application scenarios:

• SPA-H: Derived from the Japanese Industrial Standard JIS G 3125, it is a type of weathering structural steel, mainly used for structural components such as buildings, bridges, and vehicles that are exposed to atmospheric corrosion.
• Q355GNH: Implemented in accordance with the Chinese National Standard GB/T 4171-2008, it is a low-alloy, high-strength weathering steel. Upgraded from the former Q345GNH grade, it corresponds to a yield strength level of 355 MPa and is a mainstream grade in China's weathering steel field.
• S355J0WP: Complies with the European Standard EN 10025-5 and belongs to the "W" (weathering) series of weathering structural steels. "J0" represents the impact toughness grade (impact energy ≥ 27 J at 0℃). Its yield strength level is consistent with Q355GNH, making the two grades direct equivalents that can be used interchangeably in EU projects and domestic foreign-related projects in China.

In terms of equivalence, Q355GNH and S355J0WP are direct counterparts between the Chinese national standard and the European standard. Although SPA-H does not have an exact one-to-one corresponding grade in the Chinese or European standards, it is often regarded as an equivalent substitute in practical engineering due to its similar chemical composition, mechanical properties, and highly overlapping application scenarios with the other two grades.

2. Comparison of Core Chemical Compositions

The corrosion resistance of weathering steel stems primarily from the addition of alloying elements such as Cu, Cr and Ni. The chemical compositions of the three grades are all designed based on the "plain carbon steel + corrosion-resistant alloying elements" system. The specific differences are shown in the following table (Note: The component contents are all mass fractions, in %).

The comparison of compositions shows that the content ranges of the core corrosion-resistant elements (Cu, Cr, P) of the three grades are basically consistent, which is the key basis for their equivalent corrosion resistance. The main differences lie in the content range of Mn (with a higher upper limit for S355J0WP) and the upper limit of C content (lower for S355J0WP), which also lead to slight differences in toughness and weldability among the three grades.

3. Comparison of Core Mechanical Properties

Mechanical properties are the core indicators for steel applications. All three grades are positioned as medium-high strength weathering steels, with yield strength levels around 355 MPa. The specific mechanical property parameters are compared as follows (Note: The samples are in the hot-rolled state with thickness ≤ 16 mm).

Analysis of performance comparison: First, the ranges of yield strength and tensile strength are highly overlapping. The lower limit of the yield strength of SPA-H is slightly lower (345 MPa), but in practical engineering, its mechanical properties can often reach the 355 MPa grade, which does not affect its equivalent use. Second, the elongation rates all meet the plastic requirements of structural components, and the differences are negligible. Third, there are significant differences in impact toughness: Q355GNH has the lowest test temperature (-20℃) and the highest impact energy (≥34 J), indicating that it has the best low-temperature toughness and is suitable for cold regions; S355J0WP has an impact test temperature of 0℃ and SPA-H of -10℃, and the low-temperature toughness of both is slightly lower than that of Q355GNH.

4. Comparison of Usage Methods and Application Scenarios

The three grades are basically consistent in terms of usage methods (processing technology, connection methods, protection requirements) and have highly overlapping application scenarios, with only partial emphases due to differences in standard systems and slight performance variations:

(1) Common Usage Methods

• Processing Technology: All three grades have good hot and cold processing properties and can undergo rolling, bending, stamping, shearing and other processing operations. During processing, excessive heating should be avoided to prevent the burning loss of alloying elements, which would affect corrosion resistance.
• Connection Methods: Support conventional connection methods such as welding and bolted connection. For welding, it is recommended to use low-hydrogen electrodes (e.g., E5015-G). Before welding, rust and oil stains on the groove should be removed. After welding, welding slag should be cleaned in a timely manner, and post-weld stress relief treatment should be carried out if necessary to avoid welding cracks.
• Protection Requirements: The core advantage of weathering steel is "corrosion resistance without painting", which allows it to be used directly in atmospheric environments where it forms a protective film through natural rusting. If used in highly corrosive marine environments or high-humidity enclosed environments, phosphating treatment combined with fluorocarbon paint coating is recommended to further extend the corrosion-resistant service life.

(2) Differences and Emphases in Application Scenarios

• SPA-H: Mainly used in engineering projects in Japan and Southeast Asia. In China, it is often applied to vehicle chassis of Japanese automakers, containers, port machinery, etc. Due to its moderate medium-low temperature toughness (-10℃), it is more suitable for temperate and subtropical regions.

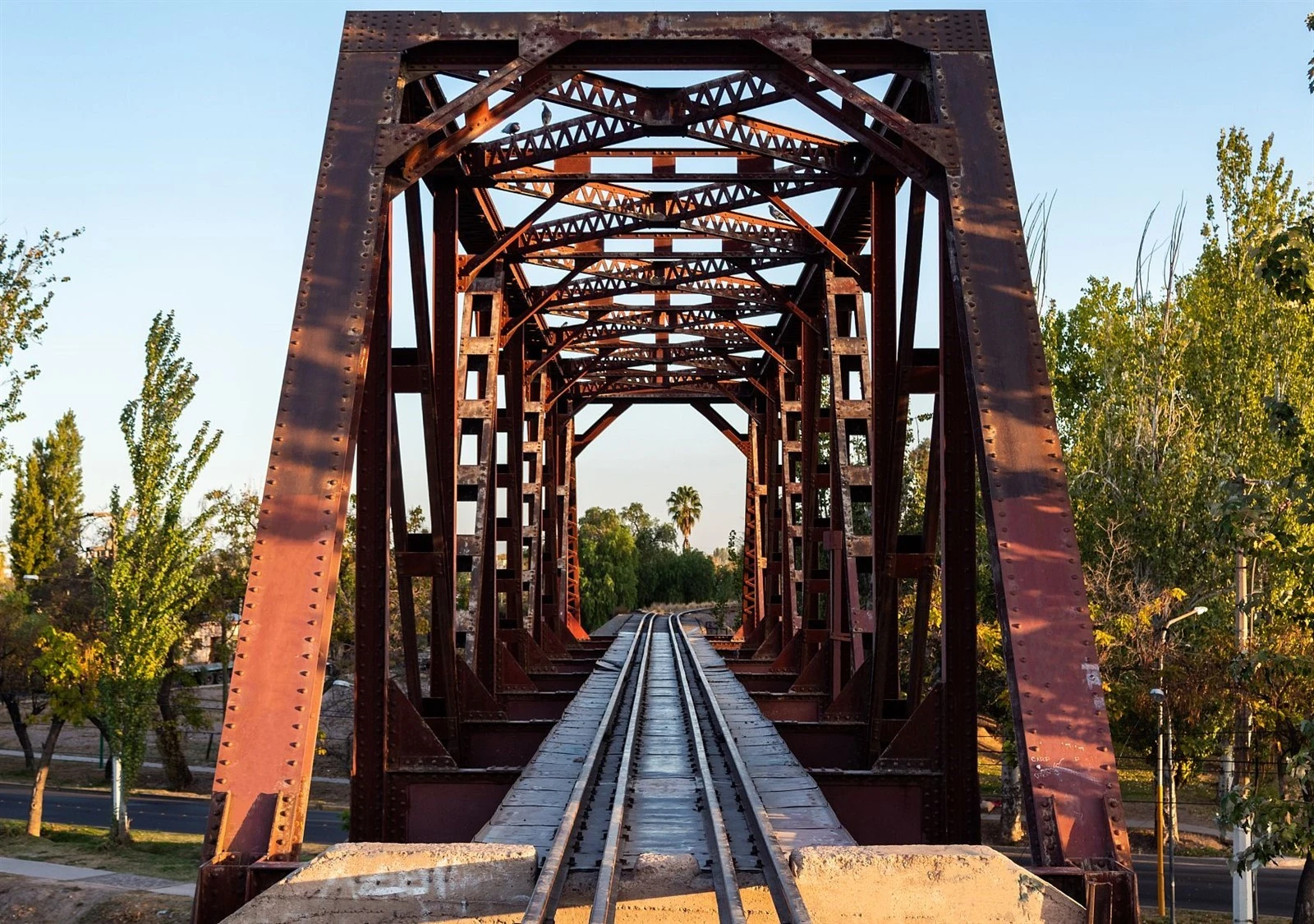

• Q355GNH: As a national standard grade, it is the most widely used weathering steel in China, applicable to building structures (e.g., weathering steel landscape bridges, factory building frames), bridge engineering (small and medium-sized highway bridges, railway bridges), construction machinery (tower cranes, cranes), etc. Its excellent low-temperature toughness enables it to be widely used in cold regions such as Northeast China and Northwest China.
• S355J0WP: Mainly used in EU projects and domestic foreign-related projects in China, such as China-EU cooperative bridges, buildings, wind turbine towers, etc. With an impact test temperature of 0℃, it is more suitable for temperate regions. If used in cold regions, additional verification of its low-temperature impact performance is required to ensure it meets the requirements.

5. Precautions for Equivalent Substitution

When selecting materials for engineering projects, the following precautions should be noted for the equivalent substitution of the three grades:

• Prioritize Compliance with Design Specifications: If the design document clearly specifies a certain standard grade (e.g., S355J0WP for European standard projects), the corresponding grade should be prioritized. If substitution is necessary, a detailed comparative report on chemical composition and mechanical properties should be provided and approved by the design unit before substitution.
• Consider the Ambient Temperature of Use: For cold regions (minimum temperature ≤ -20℃), Q355GNH should be prioritized, and S355J0WP (with impact test at 0℃) should be avoided. In temperate regions, the three grades can be substituted arbitrarily.
• Control Processing and Welding Quality: When using substitution grades, the processing technology and welding parameters should remain consistent, and the process requirements should not be simplified due to grade substitution.
• Verify Corrosion Resistance: If used in highly corrosive environments such as marine climates and industrial pollution areas, the corrosion resistance of the substitute grade should be verified through methods such as salt spray tests before substitution to ensure it meets the requirements.

Conclusion

SPA-H, Q355GNH and S355J0WP are all medium-high strength weathering steels, with highly consistent core chemical compositions (Cu, Cr, P) and mechanical properties, belonging to the equivalent grade system. Among them, Q355GNH and S355J0WP are direct counterparts between the Chinese national standard and the European standard, which can be used interchangeably in most engineering projects. Although SPA-H is a Japanese standard grade, it can be used as an equivalent substitute for the two due to its performance compatibility and overlapping application scenarios. The core difference among the three grades lies in low-temperature impact toughness: Q355GNH has the best low-temperature toughness and is suitable for cold regions; S355J0WP and SPA-H are suitable for temperate and subtropical regions. In practical engineering, materials should be selected reasonably based on factors such as design specifications, ambient temperature of use and corrosion grade to ensure the safety and reliability of equivalent substitution.
